This instrument is based on the People's Republic of China standard GB/T 1884-2000 "oil and liquid petroleum products density determination method (densitometer method)" the requirements of the design and manufacture, applicable to the determination of crude oil and liquid petroleum products density.
Features:
1.Using the form of all-in-one machine, the control box adopts humanized design, the control switch adopts the form of light touch key, novel design, compact structure, comfortable operation, beautiful and generous.
2.Intelligent liquid crystal display temperature controller, rapid temperature control, fast response, temperature control accuracy of ± 0.2 ℃.
3.Using hard glass cylinder and electric stirring device,, the specimen observation is clear, the temperature inside the bathtub is uniform.
The most important features of this instrument are: equipped with 500ml test tubes, which can save 50% of the specimen; adopting light touch keys and LCD display screen, which highlights the advanced technology and high grade of the instrument; the whole spraying plastic treatment, which has superior anticorrosive performance and is durable.
Technical parameters:
|
Working power supply |
AC (220±10%) V, 50Hz |
|
Tub volume |
Ф300㎜×340mm (diameter×height) |
|
Test tube capacity |
500ml |
|
Heating power |
700W, 1000W |
|
Temperature controller |

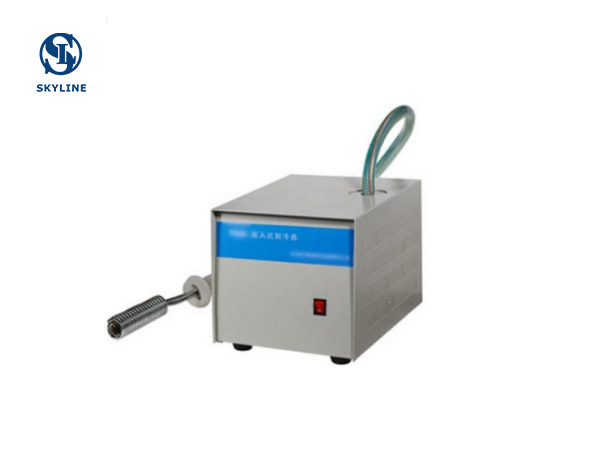

Standard with input cooler |
|
Temperature control range |
(room temperature +5) ℃ ~ 100 ℃ |
|
Temperature sensor |
Industrial platinum resistance, its graduation number for Pt100 |
|
Temperature control accuracy |
± 0.2 ℃ |
|
Thermometer |
Graduation value of 0.2 ℃ full immersion mercury thermometer |
|
External dimensions |
560 ㎜ × 380 ㎜ × 580 ㎜ (length × width × height) |
