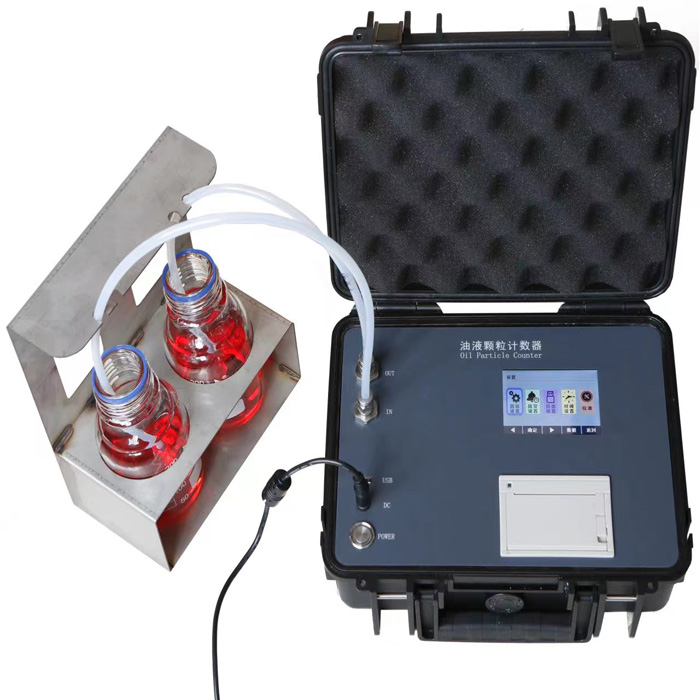

The portable particle counter is easy to use. It is used for on-site detection of the cleanliness of hydraulic oil, lubricating oil and water glycol fire-resistant fluid. The detection of cleanliness is intuitive and easy to read, and can help maintenance engineers judge the nature of oil pollutants The source of pollutants is a common detection equipment for modern factory maintenance.
Adaptation standards: DL432 (microscope contrast method), NAS1638 (formulated by the Federation of Aerospace Industries), ISO 4406 (formulated by the International Organization for Standardization).
Technical Features:
Visual inspection of 5-150μm particle pollution
The composition of particles is clear at a glance, and the pollution level can be quickly analyzed
Easy to operate, fast and practical.
Technical Parameters:
|
Microscope |
100 times |
|
Detection of particles |
5μm ~ 150μm |
|
Detection level |
NAS level 00-12, ISO level 1-24 |
|
Filter membrane |
1.2μm, 5μm |
|
Accuracy |
±0.5 pollution level |
|
Minimum injection volume |
12.5ml |
|
Ambient temperature |
15℃～55℃ |
|
Size |
540mm*400mm*340 |
|
Weight |
10.2kg |
