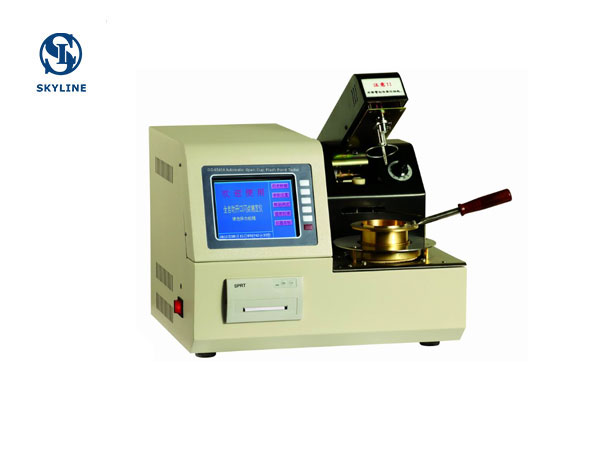

The Cleveland Open Cup Flash Point Tester is a device used to determine the flash point of a liquid, which is the temperature at which the vapor of the liquid will ignite in the presence of a spark or flame. The test is used to assess the flammability of a liquid and is often required for safety and regulatory purposes. The device consists of a heating element, a cup for holding the sample, and a temperature sensor. The sample is heated until vapor is produced, and the temperature is monitored until the vapor ignites, at which point the flash point is recorded.

The Cleveland Open Cup Flash Point Tester works by heating a sample of the liquid in a cup until vapor is produced. A small spark or flame is introduced to the vapor, and the temperature at which the vapor ignites is recorded as the flash point. The temperature of the sample is monitored using a temperature sensor, such as a thermocouple or resistance temperature detector (RTD). The device may also include a stirring mechanism to ensure that the sample is heated evenly and to prevent hot spots from forming.

To perform the test, a small amount of the liquid is placed in the cup and the device is turned on. The heating element begins to heat the sample, and the temperature is monitored using the temperature sensor. As the temperature of the sample increases, vapor is produced and is introduced to the spark or flame. If the vapor ignites, the temperature at which ignition occurs is recorded as the flash point. If the vapor does not ignite, the sample is further heated and the process is repeated until the flash point is determined.

There are a few steps involved in operating a Cleveland Open Cup Flash Point Tester:

1，First, you will need to prepare the sample by ensuring that it is at room temperature and free of contaminants. The sample should be placed in the cup according to the manufacturer's instructions.

2，Next, turn on the device and set the temperature according to the desired test method (e.g., ASTM D93, ISO 2719).

3，The device will begin heating the sample and monitoring the temperature. As the temperature increases, vapor will be produced.

4，When the vapor reaches the flash point, a spark or flame will be introduced, and the temperature at which the vapor ignites will be recorded.

5，If the vapor does not ignite, the sample will be further heated and the process will be repeated until the flash point is determined.

6，Once the flash point has been determined, the device can be turned off and the sample can be removed. The flash point can then be recorded and the results can be analyzed.

It is important to follow the manufacturer's instructions and safety guidelines when operating a Cleveland Open Cup Flash Point Tester.
